2P Series Solenoid Valve
2P025-06/08 2 Position 2 way plastic normally closed solenoid valve
Symbol

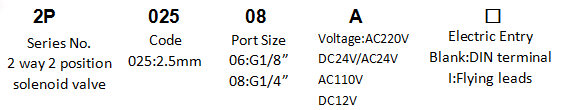

Order code
Technical parameter
Model
2P025-06
2P025-08
Fluid
Air. Water. Oil
Acting
Direct acting
Original state
Normally closed
Initial state
2.5
CV Value
0.23
Port size
G1/8
G1/4
Viscosity limit
Under 20CST
Pressure range
0-0.7MPa(0~100psi)
Proof pressure
1.5MPa(215psi)
Material of body
Nylon 66
Seal material
VITON
Response speed
<0.05s

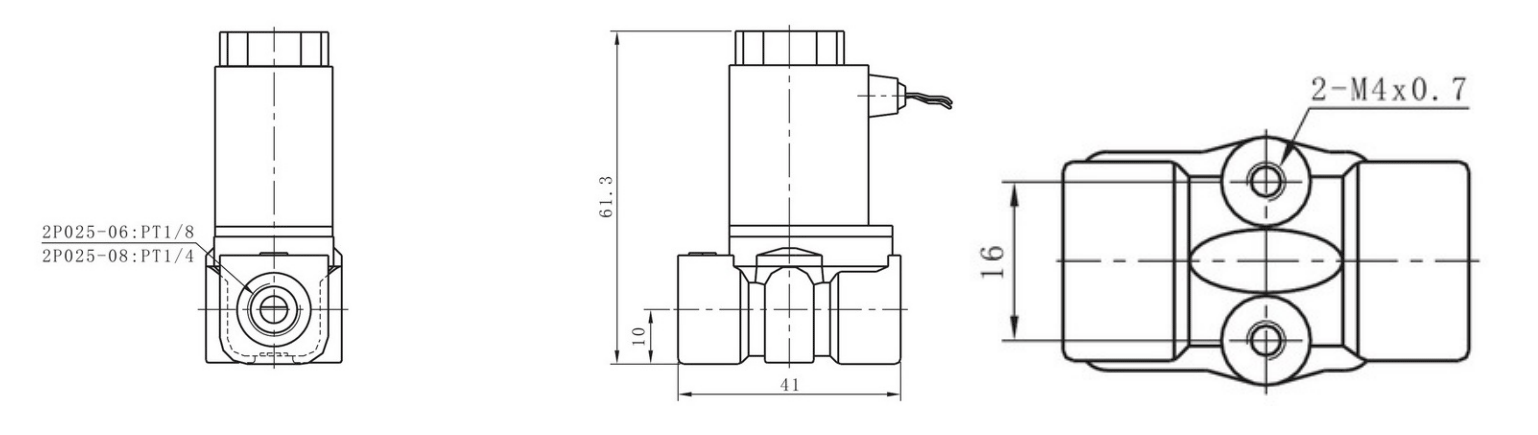

Drawing
Feature
. Direct acting type normally closed 2-way solenoid valve.
. Can be used to control On/Off of air, inert gas, liquid, and water.
. This valve has one 1/8 inch NPT inlet and one 1/8 inch NPT outlet.
. The valve stays closed when the coil is de-energized, and it opens when energized.
. Compact size and light weight, easy to assemble and disassemble.
