JMJ Series Mechanical Valves
JMJ series 5 port 2 way direct action Pneumatic Mechanical valves JMJ-01 JMJ-02 JMJ-03

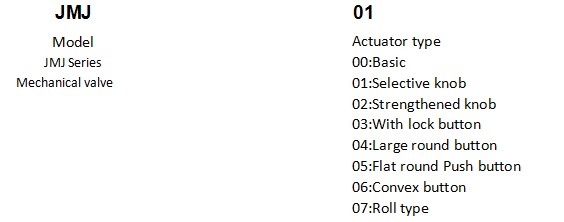

Order code

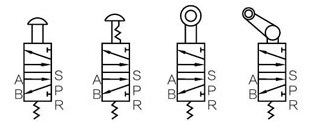

Symbol
Technical parameter
Item No.
JMJ-00
JMJ-07
JMJ-05
JMJ-06
JMJ-04
JMJ-03
JMJ-01
JMJ-02
Fluid
Air
Operating press range
0-0.8 Mpa
Ambient and fluid temperature
-5 to 60℃
Port size
1/4”
Operation type
Direct acting
Lubrication
Not required

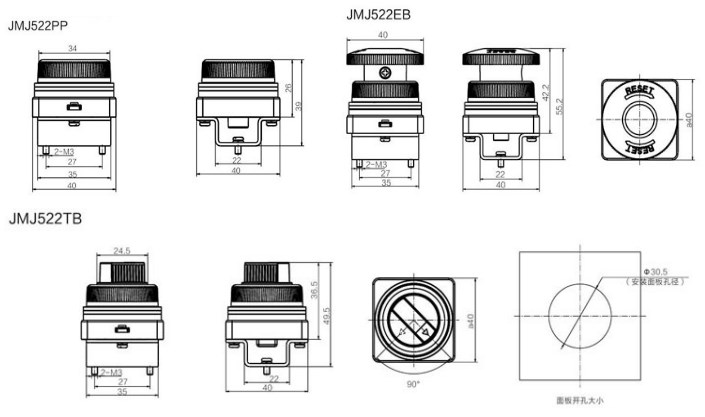

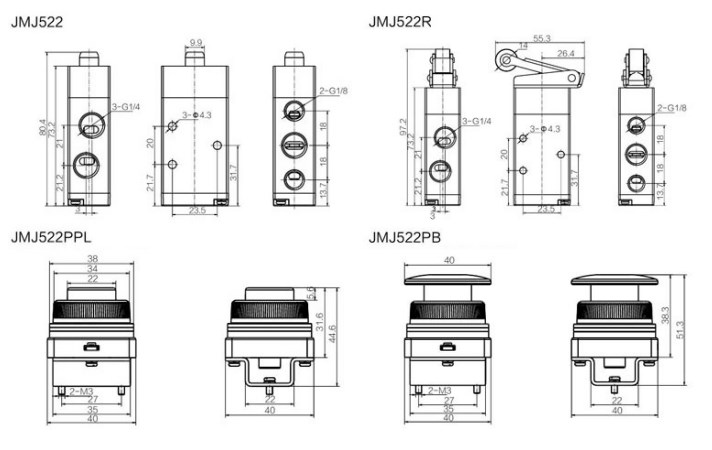

Dimension
Feature
JMJ series mechanical valve is direct acting, working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function,Lubricant is not necessary.
