ASC Series Flow Control Valve
ASC series one way throttle valve air flow control valve ASC100 ASC200 ASC300

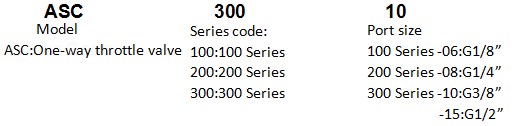

Order code

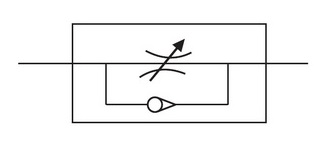

Symbol
Technical parameter
Model No
ASC100-06
ASC200-08
ASC300-10
ASC300-15
Fluid
Air
Acting
Direct acting type check valve
Port size
G1/8”
G1/4”
G3/8”
G1/2”
Valve type
3/2 way
4/2 way
Pressure range
0.05-0.95MPa
Proof pressure
1.5MPa
Temperature
-20℃~70℃
Body material
Aluminum Alloy
Flow
Check valve
200
450
1250
1650
One-way valve
400
800
1500
2500
Dimension
Feature
ASC series one-way throttle valve is small and compact structure.
Allows air to exhaust and cut off air flow. The adjustment screw of flow control valve is both sensitive and precise.
ASC100 can be mounted in various positions to facilitate installation and application.
